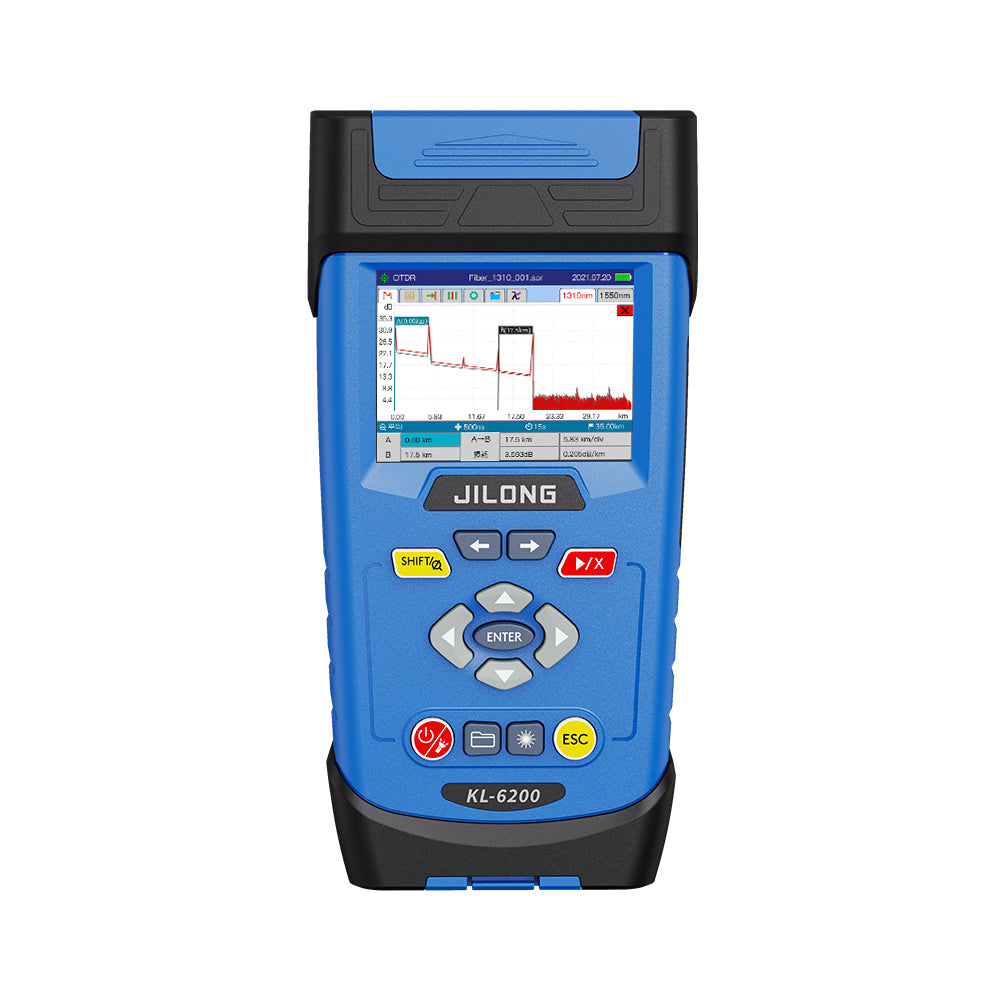

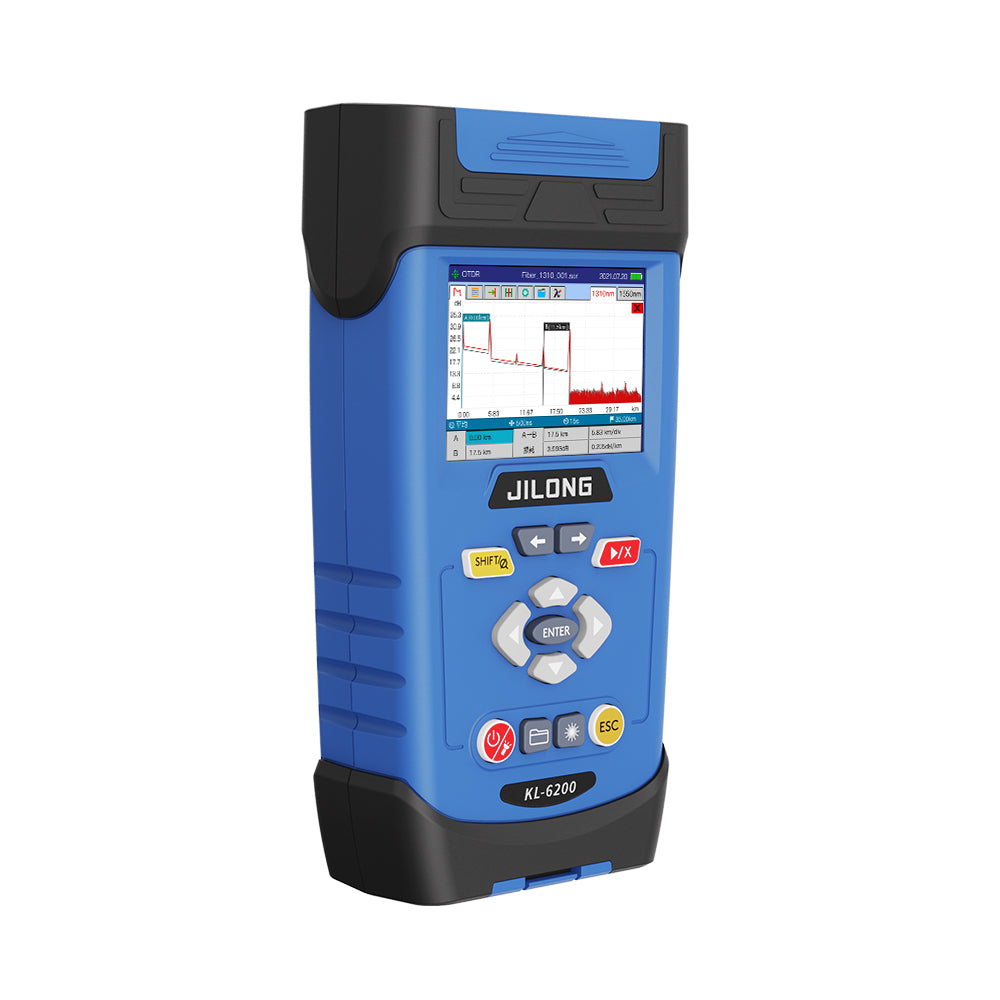

KL-6200 Fiber SMART OTDR

$965.82

● Long-haul network testing

● Access network testing

● FTTx/PON testing through splitters

● Compact, rugged,and lightweight (0.7kg)

● All new UI design with innovation

● 32dB Dynamic range

● 1m Event dead zone

● Bult-in OPM、SLS、VFL、RJ45、FIP modules

● Link Map & Pass/Fail judgment functions

● Dual wavelengths testing

JILONG

KL-6200 Fiber SMART OTDR

KL-6200 Fiber SMART OTDR

● Long-haul network testing
● Access network testing
● FTTx/PON testing through splitters
● Compact, rugged,and lightweight (0.7kg)
● All new UI design with innovation
● 32dB Dynamic range
● 1m Event dead zone
● Bult-in OPM、SLS、VFL、RJ45、FIP modules
● Link Map & Pass/Fail judgment functions
● Dual wavelengths testing

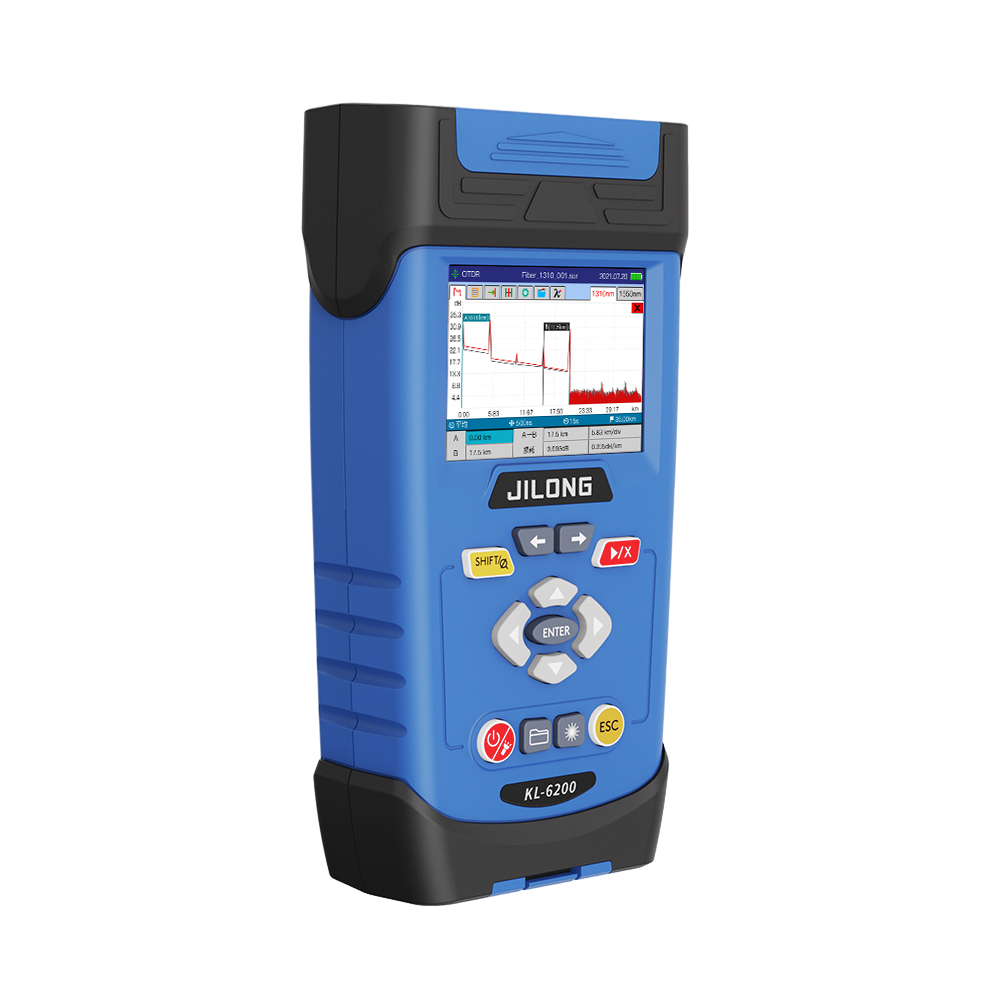

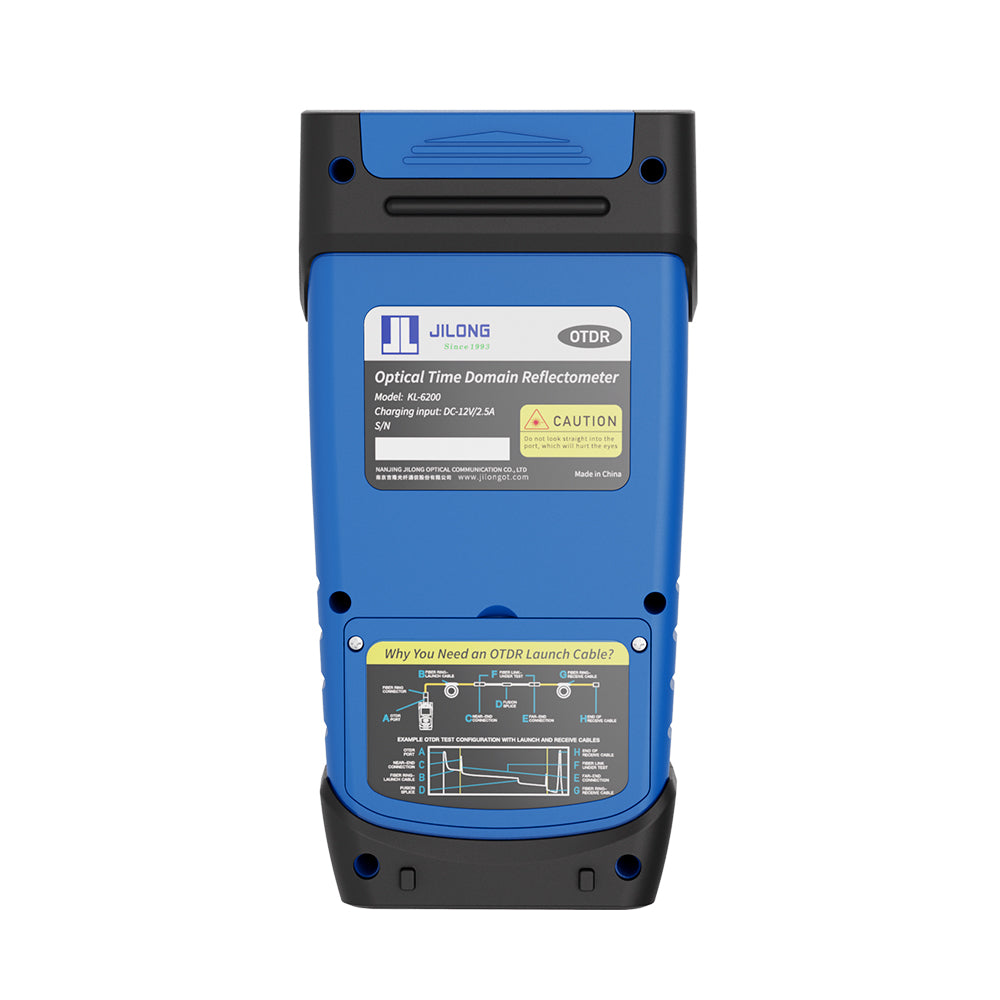

KL-6200 Fiber SMART OTDR

Discover how the KL-6200 can accelerate your fiber troubleshooting and boost network efficiency.

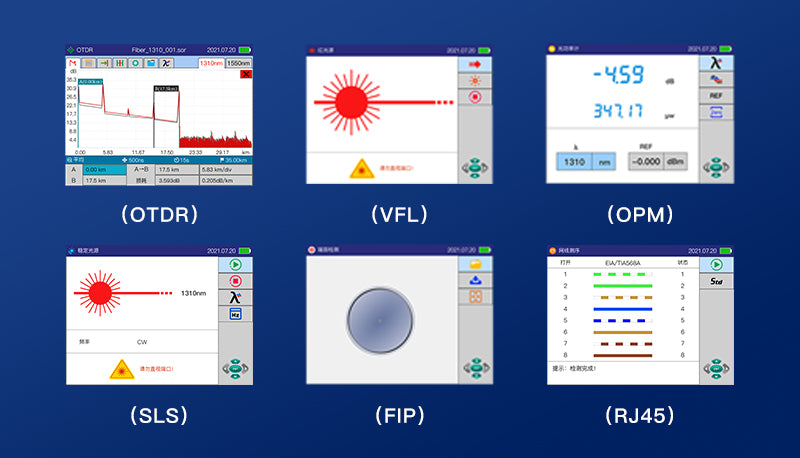

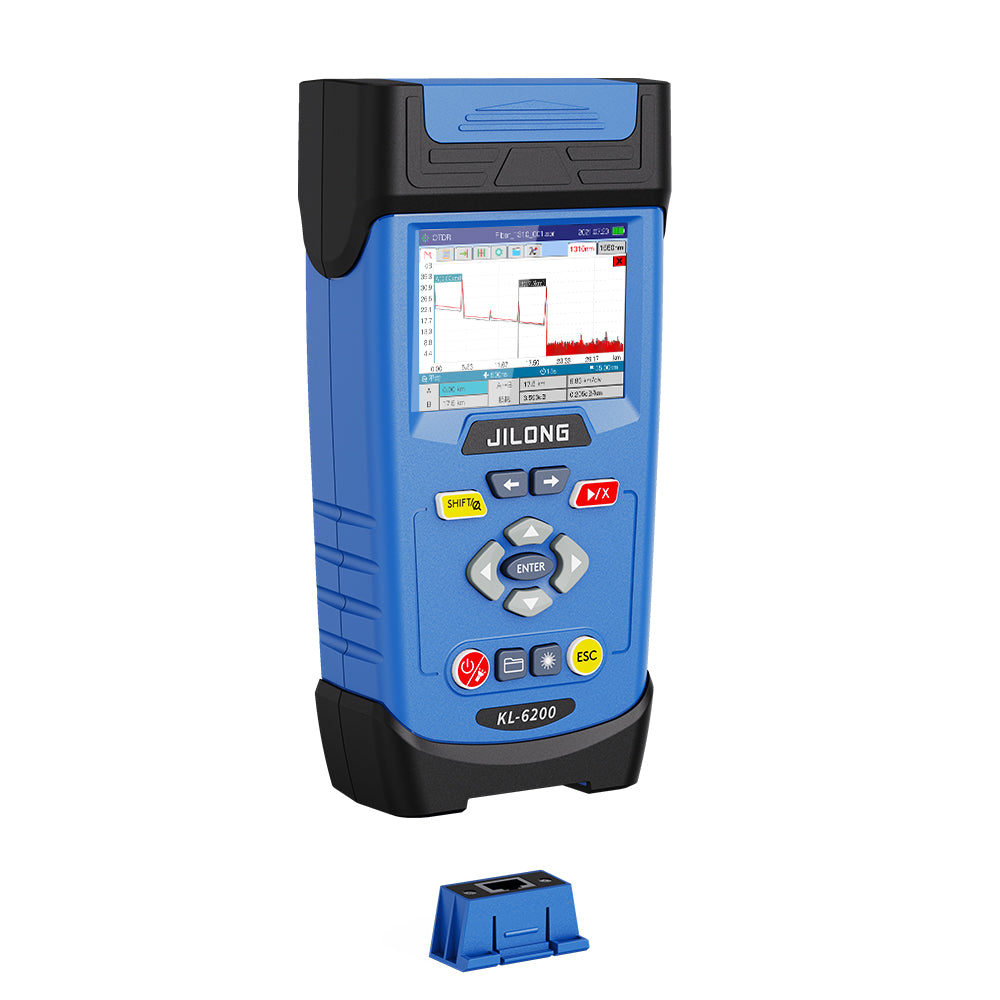

All-in-one machine

● Optical Time Domain Reflectometer (OTDR)
● Visual Fault Locator (VFL)
● Optical Power Meter (OPM)
● Stabilized Light Source (SLS)
● Fiber inspection probe (FIP)
● Network test (RJ45)

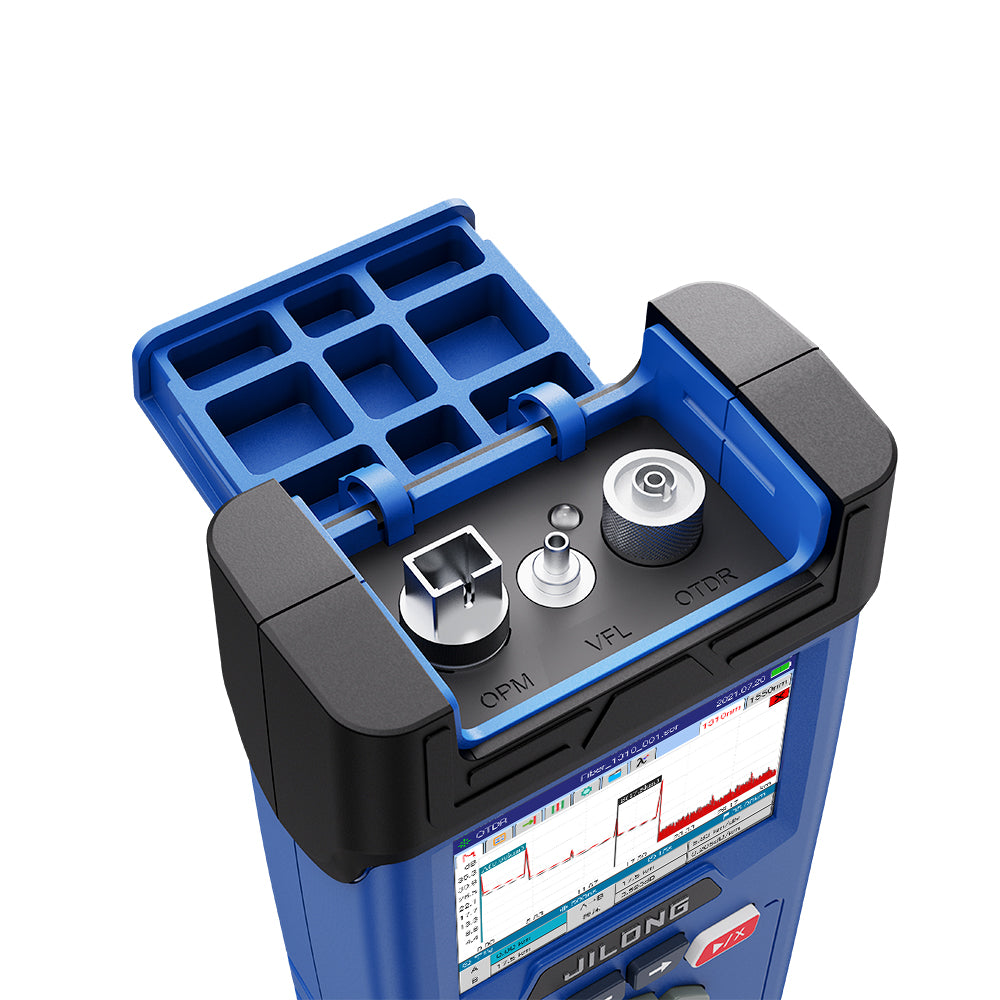

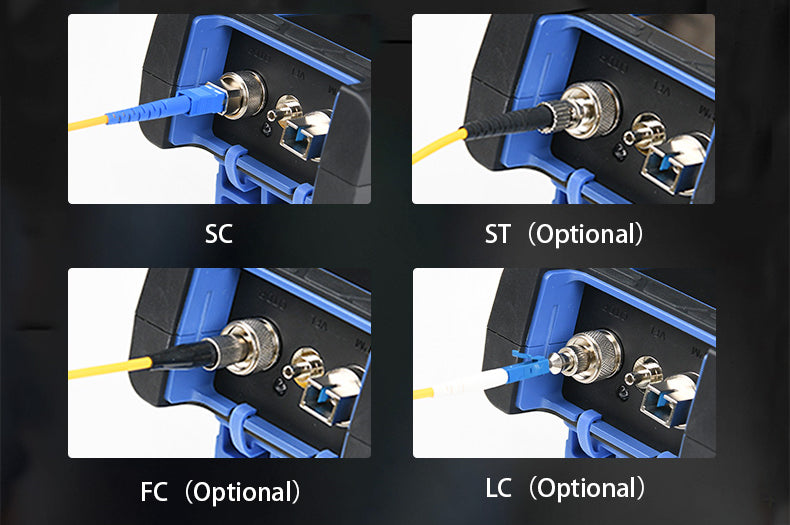

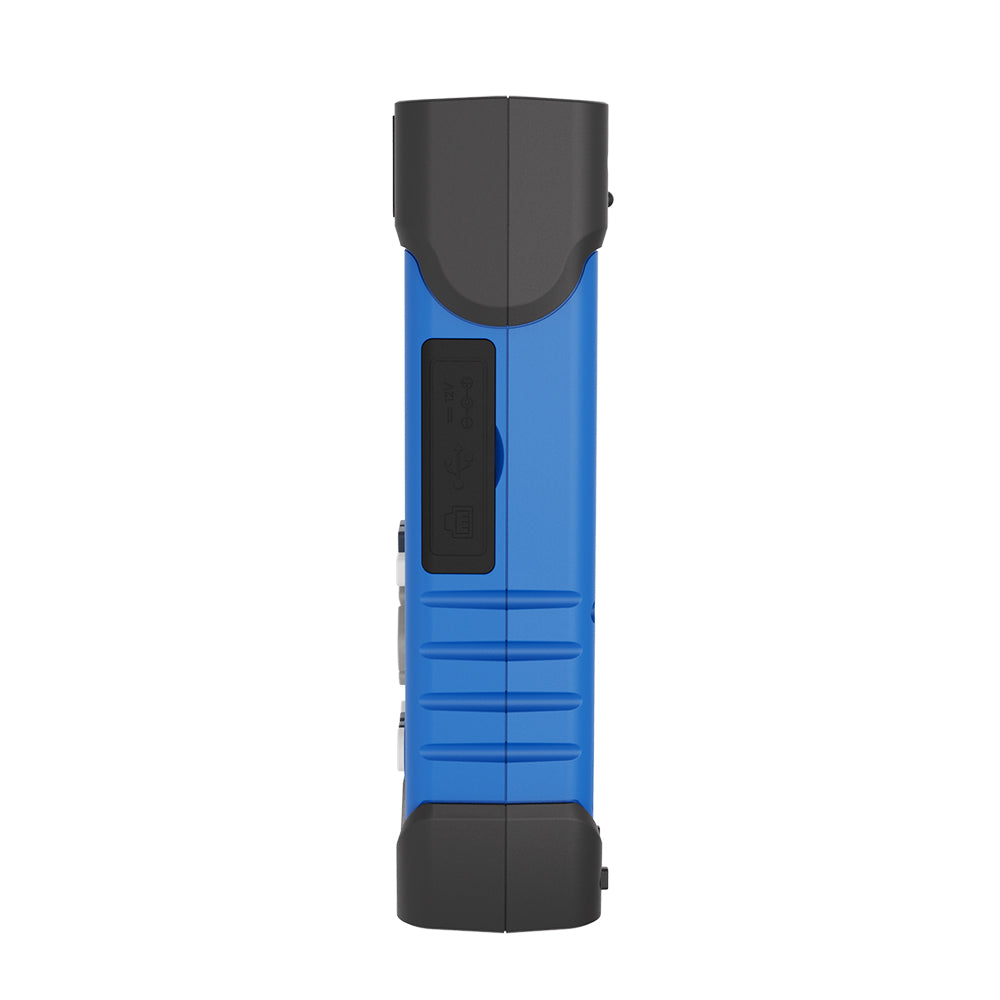

Interface

● SC
● ST (optional)
● FC (optional)
● LC (optional)

Product Specifications

Key specifications at a glance—defining quality and performance through data.

OTDR Specifications

Model

KL-6200-S

KL-6200-P

Wavelength (nm)

SM 1310/1550

PON 1310/1550/1625 (built-in filter)

Dynamic range (dB)

32/30

32/30/28

Number of optical port

1

2

Applicable fiber

SM (ITU-T G.652)

Distance range (km)

0.5, 1, 2, 5, 10, 20, 35, 50, 75, 100, 150, 200

Pulse width (ns)

5, 10, 20, 50, 100, 200, 500, 1000, 2000, 10000, 20000

Event dead zone*1 (m)

1

Attenuation dead zone*2 (m)

3.5

Number of sampling points

Max. 80000

Sampling resolution

Min. 0.04m

Distance measurement accuracy

±(0.75 m + Measurement distance × 2 × 10−5 + Sampling resolution)

Loss measurement accuracy

±0.03 dB/dB

Return loss measurement accuracy

±2 dB

Optical Power Meter Module

OPM Status

✔

Wavelength (nm)

800 ~ 1650nm

Power range

-70 ~ +6dBm

Measure accuracy

＜（±0.2dB or ±5%）

Display resolution

0.01dB

Optical input port

SC/UPC + 2.5mm Universal ferrule

Stabilized Light Source Module

SLS Status

✔

Wavelength (nm)

1310/1550

Output power

≥-10dBm

Modulation mode

CW, 270 Hz, 1 kHz, 2 kHz

Laser class

Class 1M or Class 1

Optical input port

OTDR port

Visual Fault Locator Module

VFL Status

✔

Wavelength (nm)

650nm

Output power

10mW

Modulation mode

CW, CHOP (2 Hz)

Laser class

Class 3R

Optical input port

2.5 mm Universal ferrule type

RJ45 Networks Test

RJ45 Status

✔

Wavelength (nm)

CAT5, CAT6

Distance of Cable Collation

300m

Distance of emitting signal

300m

Fiber Inspection Probe

FIP Status

Optional

Magnification

250X

Resolution (μm)

≥1.0

Electrical interface

USB 2.0

Optical Connector

FC/UPC, SC/UPC, ST/UPC

Sensor

1/3 inch

General Specifications

Link Map / Pass-Fail judgment

✔

Distance unit

m, km, mile, ft, kft

PC Analysis Software / Languages

English, Español, Chinese, Português, Français, Русский

Optical connector

SC/UPC (FC/UPC, ST/UPC, LC/UPC is Optional)

Display

3.5-inch color TFT LCD (Resolution: 640 × 480)

Electrical interface

Charge port × 1, USB 2.0 × 3, RJ45 × 2

Operating temperature

-10 ~ 50℃ (0 ~ 40℃ when AC adapter is being used; 0 to 35℃ during battery charging)

Storage temperature

-20 to 60℃

Altitude / Humidity

4000 m / 0 to 90% RH (20 to 90% with AC adapter, non-condensing)

Power requirements

100 - 240V AC, 50/60Hz (AC adapter)

Battery

3000mAh

LED Light illumination

≥15000mcd

Operating time

5 hours

Data storage

Internal storage: ≥1000 waveforms, External storage: USB memory

Dimensions & Weight

118 mm(W) × 218 mm(H) × 55 mm(D) | Approx. 0.73 kg

Notes:

1. Minimum pulse width, return loss: ≥55 dB (≥40 dB for 850/1300 nm), group refractive index: 1.5, at 1.5 dB below the unsaturated peak level.

2. Minimum pulse width, group refractive index: 1.5, at a point where the backscatter level is within ±0.5dB of the normal level. For SMF, at 1310nm, return loss: ≥55dB.

3. New Battery

All specifications valid at 23°C ± 2°C (73.4°F ± 3.6°F) unless otherwise specified.

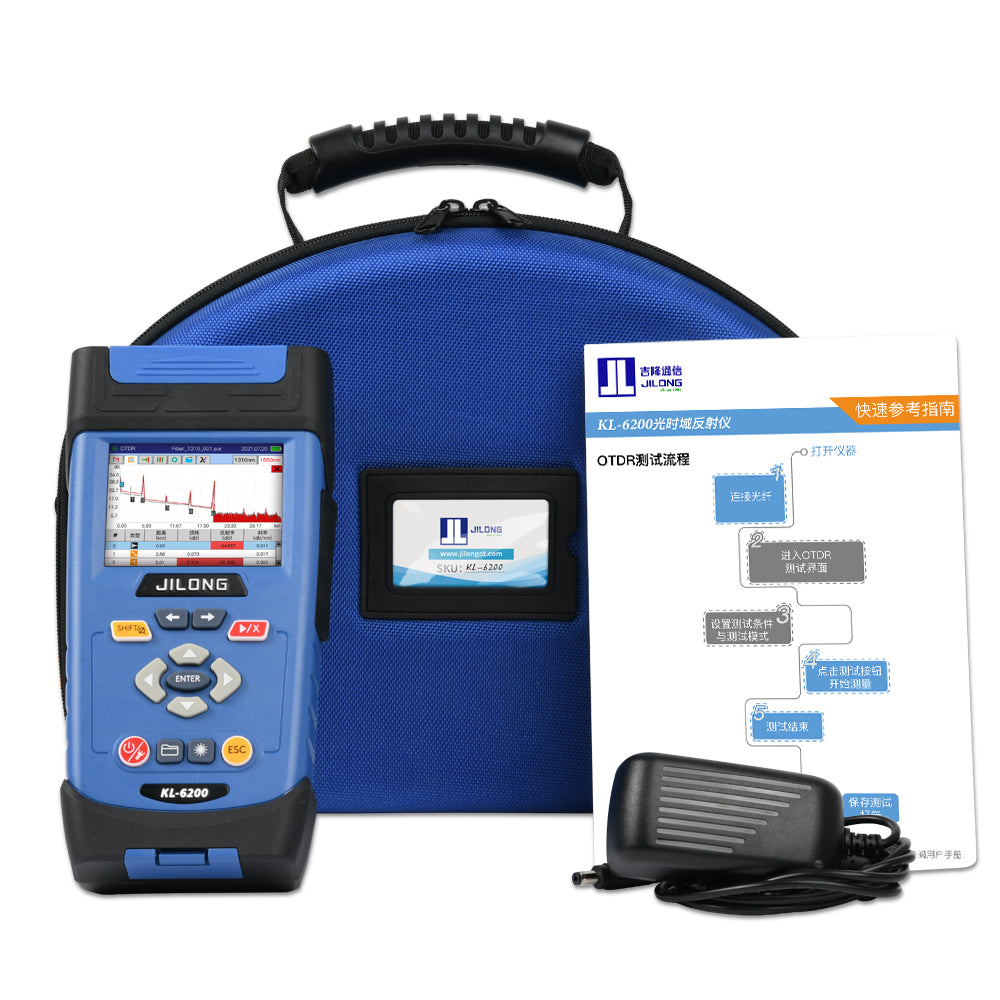

Packing List

Ensuring every core component and accessory arrives in perfect condition.

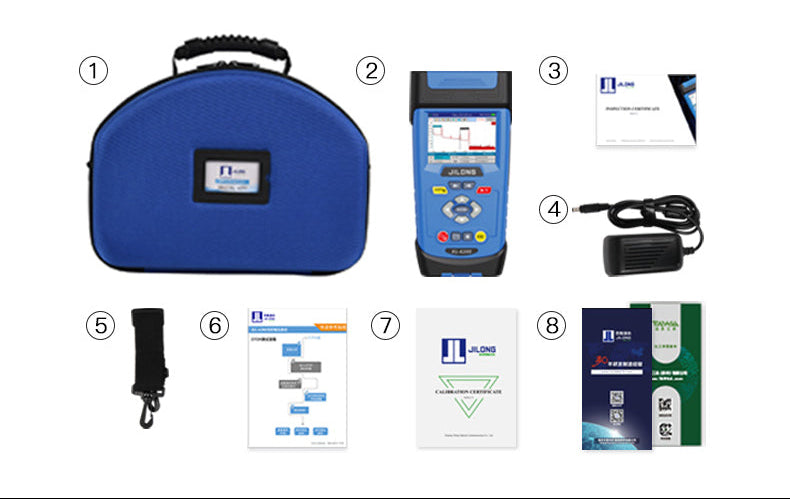

KL-6200 OTDR Packing List

① Carry Bag
② OTDR main body
③ Inspection Certificate
④ Power adapter
⑤ Gallusus
⑥ Quick Reference Guide
⑦ Calibration Certificate
⑧ Brochure-JILONG/TAWAA

KL-6200 - Vision in Motion

Experience the power and versatility of the KL-6200 in action

FAQs

A dead zone refers to the temporary period where the OTDR's internal detector is "blinded" by a strong reflective event (such as a fiber connector or a mechanical splice), making it unable to accurately measure subsequent closely spaced events.
There are two main types of dead zones:

Event Dead Zone (EDZ): The minimum distance required to distinguish between two consecutive reflective events.

Attenuation Dead Zone (ADZ): The minimum distance required after a reflective event for the OTDR to accurately measure the continuous loss (attenuation) of the fiber.

Tip: If the dead zone is too long, fiber faults close to the tester (such as a break within the first few meters) might remain hidden. To fix this, you can use a launch fiber (pulse suppressor/dummy fiber) to move the dead zone outside the target fiber under test.

Different wavelengths serve different purposes. It is highly recommended to perform dual-wavelength testing for a comprehensive analysis:

1310 nm: Insensitive to micro-bending within the fiber, but has a higher attenuation rate. It is ideal for pinpointing fiber breaks or localized defects.

1550 nm: Low attenuation, making it perfect for long-distance testing. Crucially, it is highly sensitive to bending (micro-bends/macro-bends).

1625 nm / 1650 nm: Typically equipped with an in-line filter, these wavelengths are dedicated to live fiber testing. They allow you to troubleshoot an active link without disrupting live network traffic.

No, optical fiber cannot amplify signals passively. This "gainer" phenomenon is a optical illusion that typically occurs when two fibers with different backscatter coefficients are spliced together.
When light travels from a fiber with lower backscatter to one with higher backscatter (due to differences in manufacturer or Mode Field Diameter [MFD]), more photons are reflected back to the OTDR. The instrument interprets this surge in energy as a gain.

Solution: You must perform a bi-directional test (measure from End A to End B, and then from End B to End A) and calculate the average value of the two readings to determine the true splice loss.

Pulse width dictates the duration of the light pulse injected into the fiber. It requires a trade-off between reach (dynamic range) and detail (resolution):
Short Pulse Widths (e.g., 3 ns, 10 ns, 30 ns): Inject less energy, limiting the distance, but offer extremely high resolution and small dead zones. Ideal for short-distance, high-connector environments like LANs or FTTH drop sections.
Long Pulse Widths (e.g., 1 µs, 10 µs, 20 µs): Inject massive energy to penetrate long distances, but suffer from low resolution and massive dead zones. Ideal for long-haul backbone testing spanning dozens or hundreds of kilometers.
Rule of Thumb: Always use the shortest pulse width possible that still allows you to clearly see the end of the fiber.

This is a very common and normal discrepancy caused by two main factors:
1. Helix Factor (Take-up Factor): To prevent the delicate glass fibers from breaking when the cable is pulled or bent, they are not laid perfectly straight inside the buffer tubes; instead, they are spiraled around a central strength member. Consequently, the actual physical fiber length measured by the OTDR is typically 0.5% to 2% longer than the physical cable jacket.
2. Index of Refraction (IOR) Settings: An OTDR calculates distance based on the time it takes for light to travel out and back (). If the IOR configured in your tester does not exactly match the manufacturer's actual fiber specifications, the calculated distance will be slightly off.
